Does the idea of turning a cheap USB TV tuner into a surprisingly capable Software Defined Radio (SDR) appeal?
That’s exactly what I tried with the Realtek RTL2832U USB dongle. Originally sold as a digital TV receiver, compatible versions of this little device became hugely popular with radio enthusiasts because they could also be used to receive a wide range of radio signals.
In this original hands-on test, I used the RTL2832U for:
- Software Defined Radio reception (FM, AM, SSB and CW)
- DAB Digital Radio
- Freeview Digital TV with programme guide
- ADS-B aircraft tracking
- TV and radio recording
All of the above was possible with this cheap little USB dongle.
Looking to set one up yourself? See our dedicated RTL-SDR Getting Started Guide for installation, SDR# setup, troubleshooting and antenna information.
What is the Realtek RTL2832U SDR dongle?
The RTL2832U was originally designed for inexpensive USB digital TV receivers. Radio enthusiasts discovered that compatible dongles could also be used as wideband radio receivers when paired with suitable software.
The unit I tested was marketed as a “Mini Digital TV USB Stick” and came with a basic remote control and a tiny digital TV aerial. It was supplied with Blaze software for digital TV and radio use, but with some additional software it could be opened up to a host of other possibilities – including amateur radio reception.
I picked one of these up at the Rainham Radio Rally for a little over £18. At the time, similar dongles were also widely available online and represented a very inexpensive way of experimenting with Software Defined Radio.
RTL-SDR hardware has moved on considerably since this original test. If you’re thinking of buying one today, see our RTL-SDR Getting Started Guide rather than relying on the older models and prices originally mentioned on this page.

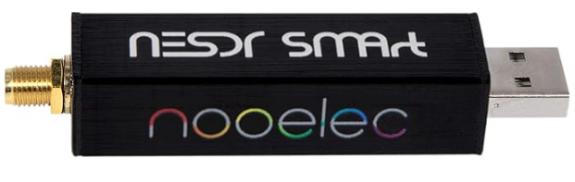

Which RTL-SDR should I buy?Our pick: NooElec NESDR SMArt v5 See the NooElec NESDR SMArt v5 on Amazon UK | NooElec NESDR SMArt v5 on eBay Established alternative: RTL-SDR Blog V3 See the RTL-SDR Blog V3 on Amazon UK | RTL-SDR Blog V3 on eBay Easy starter kit: NooElec NESDR Mini 2+ See the NESDR Mini 2+ kit on Amazon UK | NESDR Mini 2+ on eBay As an Amazon Associate, Essex Ham earns from qualifying purchases. |
RTL-SDR Software Defined Radio: Installation
Note: The following section documents the SDR# installation method I used when this article was originally written. SDR# and RTL-SDR installation procedures have changed over time, so for current setup information see our RTL-SDR Getting Started Guide.
For my original setup, I went to airspy.com/download and downloaded the Windows SDR Software Package.
I downloaded the ZIP file, extracted the files to a folder called c:\sdrsharp\, and then ran install-rtlsdr.bat. This downloaded the required RTL dongle drivers.
Next, I plugged in the dongle. Windows attempted to install its own driver, but the SDR software required the appropriate RTL-SDR driver to be installed using Zadig.
In the SDR installation folder, I ran Zadig.exe. Zadig detected the Realtek device and allowed the correct driver to be installed.
If the device isn’t visible, use Options > List All Devices and look for the Realtek/RTL device.
The driver installation application was rather chatty, as installers go. It pointed out that Microsoft didn’t return enough information for it to estimate how long the installation would take, so it entertained me while it worked. Nice touch.
Using the RTL2832U as a Software Defined Radio
With the driver installed, it was time to run SDR# using the sdrsharp.exe file.
The interface started up, and there were two things I needed to do:
- Select the RTL-SDR dongle as the input device from the source box at the top left, then press Play.
- Increase the RF gain. Initially I could see signals in the waterfall but couldn’t hear anything because the RF gain was set to zero.
Here is my first screenshot, showing stereo audio from commercial radio station Heart FM on 96.3MHz. The software even decoded the RDS station name and “now playing” information.
Broadcast radio worked fine and the audio sounded good, particularly once the dongle was connected to a decent rooftop antenna.
Next, I tried the amateur 2 metre band:
Having problems with SDR#? Check that the RF gain is set high enough, try a different USB port and check that the correct driver has been installed.
Receiving ADS-B Aircraft Signals with RTL-SDR
The dongle can receive ADS-B aircraft transmissions on 1090MHz. For this original experiment I used an application called RTL1090 to receive the raw aircraft data.
Note: The software described in this section reflects the setup I used when this article was originally written. There are newer ADS-B software options available today.
I then used ADSBScope to plot the aircraft information onto a map.
When I started ADSBScope, I got a Registry Error (Win code error: 2) message, but this didn’t seem to cause a problem.
Three settings had to be changed:
- Under Other > Network > Network Setup, press the “RTL1090” preset button.
- On the same screen, set the IP address to “127.0.0.1”.
- Tick Other > Network > Raw Data Client Active.
Receiving Freeview Digital TV
As the dongle was originally designed as a digital TV receiver, I also tried it with Freeview.
For this original test I installed the supplied drivers and Blaze software, then connected the dongle to a standard TV aerial rather than my amateur radio antenna.
Blaze performed a channel scan and correctly found the Freeview channels available in my area. The software provided access to the electronic programme guide, recording facilities and the ability to capture screenshots of live TV.
Receiving DAB Digital Radio
I also tested the dongle as a DAB digital radio receiver using the supplied Blaze software.
Switching to DAB for the first time caused the software to perform another channel scan. This took several minutes because it covered quite a wide frequency range.
The scan eventually returned a list of 88 received DAB stations from several multiplexes. Audio quality was very good and the software had a decent interface, as pictured here:
Switching Between Radio and TV
It wasn’t immediately obvious how to switch between Freeview TV, FM and DAB in the Blaze software I was using. The trick was to press the green “TV” button, which opened a menu allowing the different services to be selected.
Antennas for the Realtek RTL-SDR Dongle
With only a tiny 12cm antenna supplied, I wasn’t expecting much. It was only when I connected the dongle to a decent antenna that things really started to open up.
The supplied antenna is unlikely to give great reception unless you’re outdoors or in a particularly good location, so connecting a better antenna can make a huge difference.
The connector on my original USB stick was a small MCX connector. At the time I found an MCX-to-TV-coax adaptor, then modified the lead by replacing the TV plug with a BNC connector so that I could connect the receiver to a more useful amateur-radio antenna.
For VHF and amateur radio reception, connecting the dongle to a decent external antenna made a noticeable improvement.
Realtek RTL2832U SDR: Summary
This little USB receiver turned out to be an impressive piece of kit. For relatively little money, it opened up Software Defined Radio, amateur radio reception, FM broadcast radio, aircraft tracking, DAB and digital television.
RTL-SDR hardware and software have moved on since I carried out these original experiments, but the RTL2832U played an important part in making Software Defined Radio accessible to radio enthusiasts at very low cost.
Want to try RTL-SDR yourself? Continue with our RTL-SDR Getting Started Guide for information on setup, SDR# configuration, troubleshooting and antennas.
Any questions or comments? Please add them below and I’ll try to help.
Pete M0PSX
